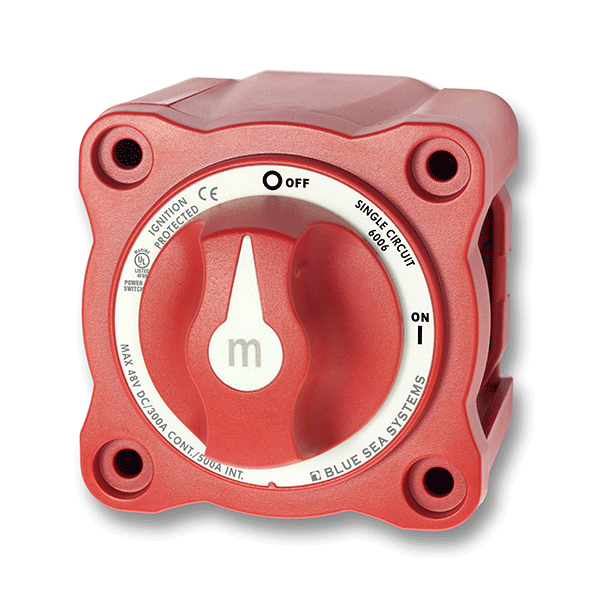

Blue Sea Systems 6006 m-Series Battery Switch, 2 Position, On-Off, 300A, 48V
Click to open expanded view

Blue Sea Systems 6006 m-Series Battery Switch, 2 Position, On-Off, 300A, 48V

SKU: 6006
Price
$39.72
Taxes and shipping calculated at checkout
Out of stock
Blue Sea Systems 6006 m-Series Battery Switch, 2 Position, On-Off, 300A, 48V

Stock Notification

Get notified when this product is available again
Blue Sea Systems 6006 m-Series Battery Switch, 2 Position, On-Off, 300A, 48V

Blue Sea Systems 6006 m-Series Battery Switch, 2 Position, On-Off, 300A, 48V

$39.72

Product information

Blue Sea Systems 6006 m-Series Battery Switch, 2 Position, On-Off, 300A, 48V

Item #: 78405

  • Blue Sea Systems 6006 m-Series Battery Switch
  • Category: Battery Disconnects
  • Manufacturer: Blue Sea Systems
  • Ignition protected - safe for installation aboard gasoline powered boats
  • Case design allows surface or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts
  • 48V DC Maximum Voltage
  • 1 Battery inputs
  • 0.65lb (0.29 kg)
  • 2 Switch Positions
  • Continuous Rating of 300A. Intermittent Rating of 500A (5 minutes)
  • 10 Second Cranking Rating of 1500A. 1 Minute Cranking Rating of 775A
  • 4/0 AWG (120mm²) Cable size to meet ratings
  • 1.12in (28.45 mm) Clearance For 4/0 AWG Cables
  • Terminal stud size 3/8 -16 (M10)
  • Terminal Stud Torque 120 in-lb (13.56 Nm)
Manufacturer Item: 6006
