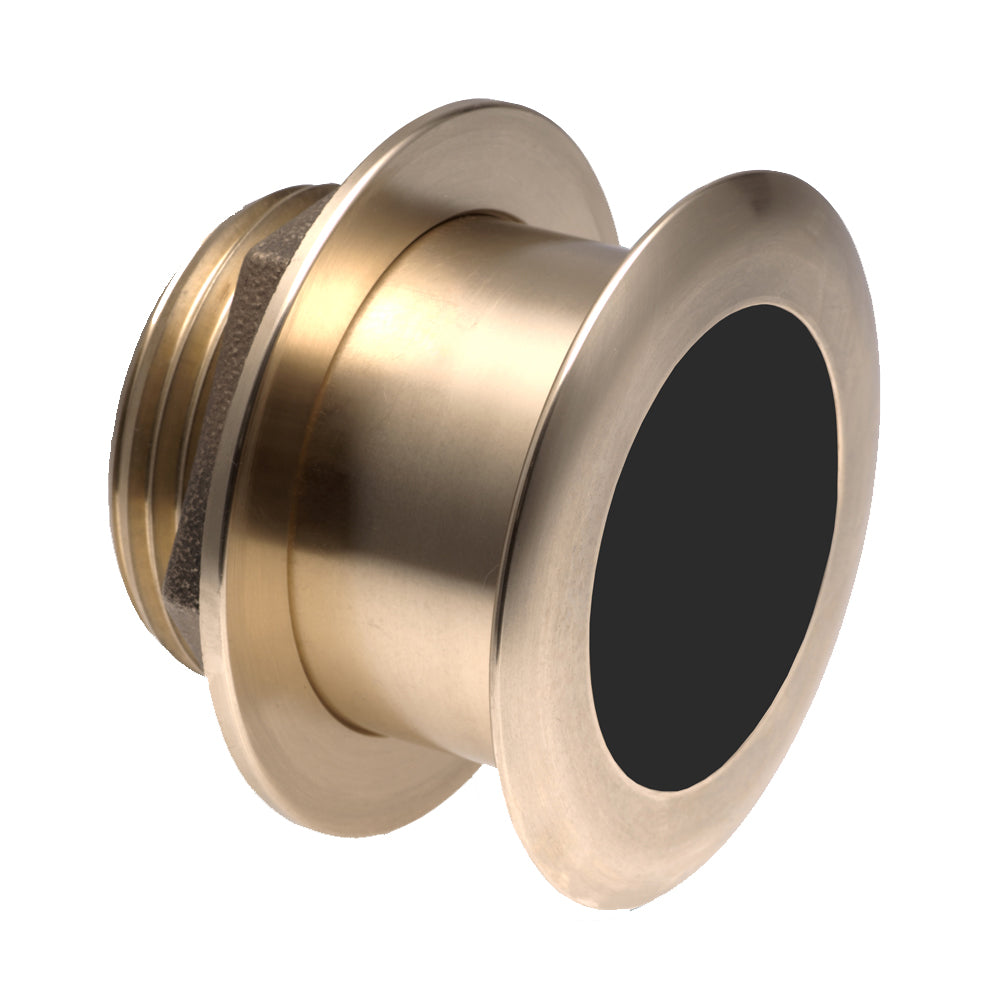

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]
Click to open expanded view

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]

SKU: A80321-RAY
Price
$1,579
Taxes and shipping calculated at checkout
In stock and ready for shipping
American Express
Apple Pay
Bancontact
Diners Club
Discover
Google Pay
iDEAL
Mastercard
PayPal
Shop Pay
Visa
Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]

$1,579

Product information

B175H-W 1KW Bronze Thru Hull 20° Tilted Element

Installation: Thru Hull

Material: Urethane

Power (RMS): 1kW

Max Depth(ft): 800

Frequency (KHz): 150-250

Records: Depth and Temperature

Approved Hull Material: Fiberglass / Wood

Cable Length (ft/M): 6ft/2m

Supported deadrise: 16-24° Deadrise

ADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Mounting Style: Thru-Hull
  • Imagining: Standard
  • Chirp: High Wide
  • Cable Length (Feet): 6'
  • Box Dimensions: 9"H x 11"W x 12"L WT: 9.8 lbs
  • UPC: 723193796276

Image Gallery - Raymarine

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]
Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer - 1kW [A80321]
