SeaStar SS13715 Safe-T QC Rotary 15ft Outboard Steering Kit Teleflex Marine SS13715

SeaStar SS13715 Safe-T QC Rotary 15ft Outboard Steering Kit Teleflex Marine Description: Product Description

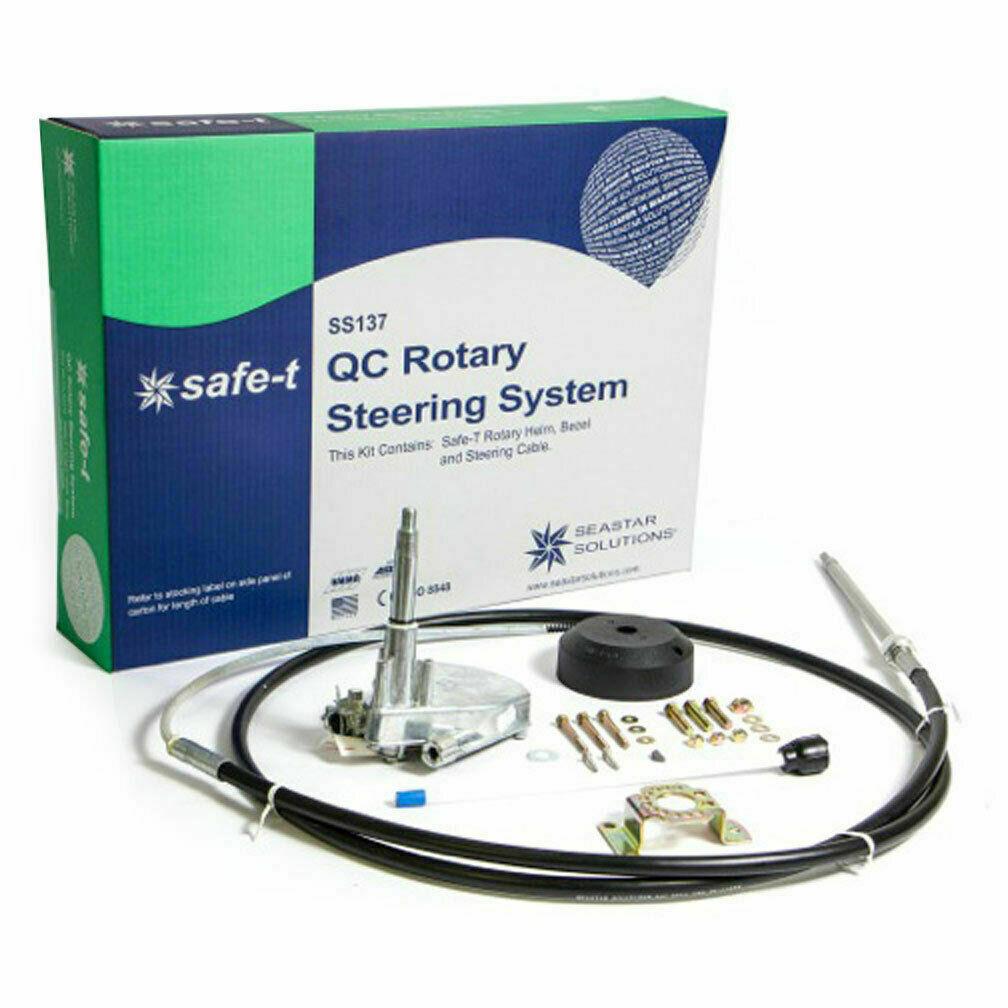

SeaStar (Teleflex Marine) Safe-T QC mechanical rotary steering system. Part number SS13715. Includes cable, helm, and bezel to fully replace an existing steering system or as part of a installation. Features a quick-response 3.0-turn lock-to-lock helm and a common 3/4″ tapered keyed steering shaft for wheels up to 16″. Suitable for most outboards up to 60 HP that have a tilt tube and link arm.

Cable Length (Important!)
This system comes with a 15 foot cable (SS13715). Use the measuring guide in the product photos to make sure it is what you need. The 15ft is measured from the helm connector to the end of the stainless shaft that connects to the link arm. If measuring an existing cable and you only measure the cable jacket, it will be too short!

Kit Contents for SS13715
Name Part Number Qty
Helm SH5094-1P 1
Bezel SB27484P 1
Cable SSC6215 1
Hardware Kit - 1
Instructions - 1


SeaStar Steering Reference Guide
Learn about this and other mechanical steering systems
Series Type Turns NFB Model Cable Max HP Max MPH
SS132 Rotary 3.0 Y NFB Safe-T II SSC62 100 HP 50 MPH
SS137 Rotary 3.0 N Safe-T QC SSC62 60 HP -
SS147 Rotary 4.2 Y NFB 4.2 SSC62 130 HP 50 MPH
SS141 Rack & Pinion 4.0 N The Rack SSC134 75 HP -
SS151 Rack & Pinion 4.0 Y NFB Rack SSC134 150 HP 50 MPH
SS152 Rack & Pinion 4.0 Y Dual Rack SSC135 150 HP 55+ MPH Brand: SeaStar Solutions SKU: SS13715 UPC: 731957015365
