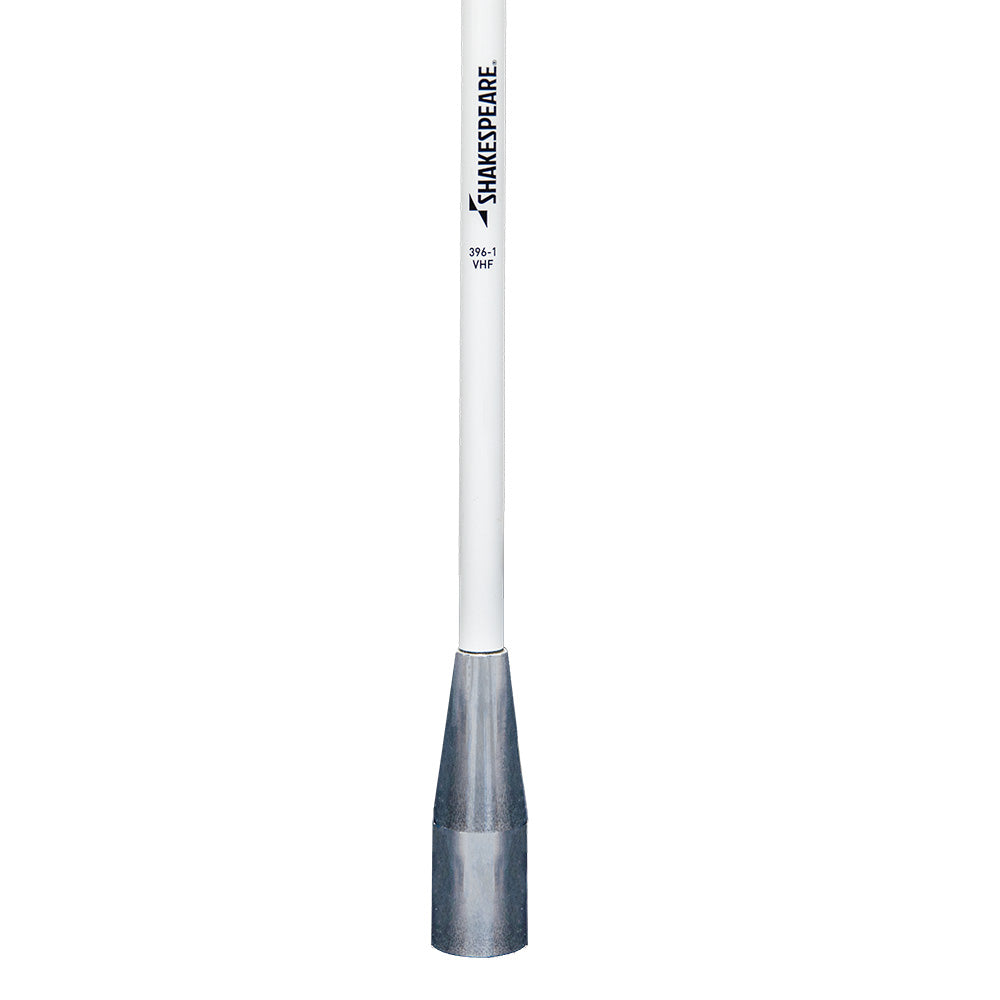

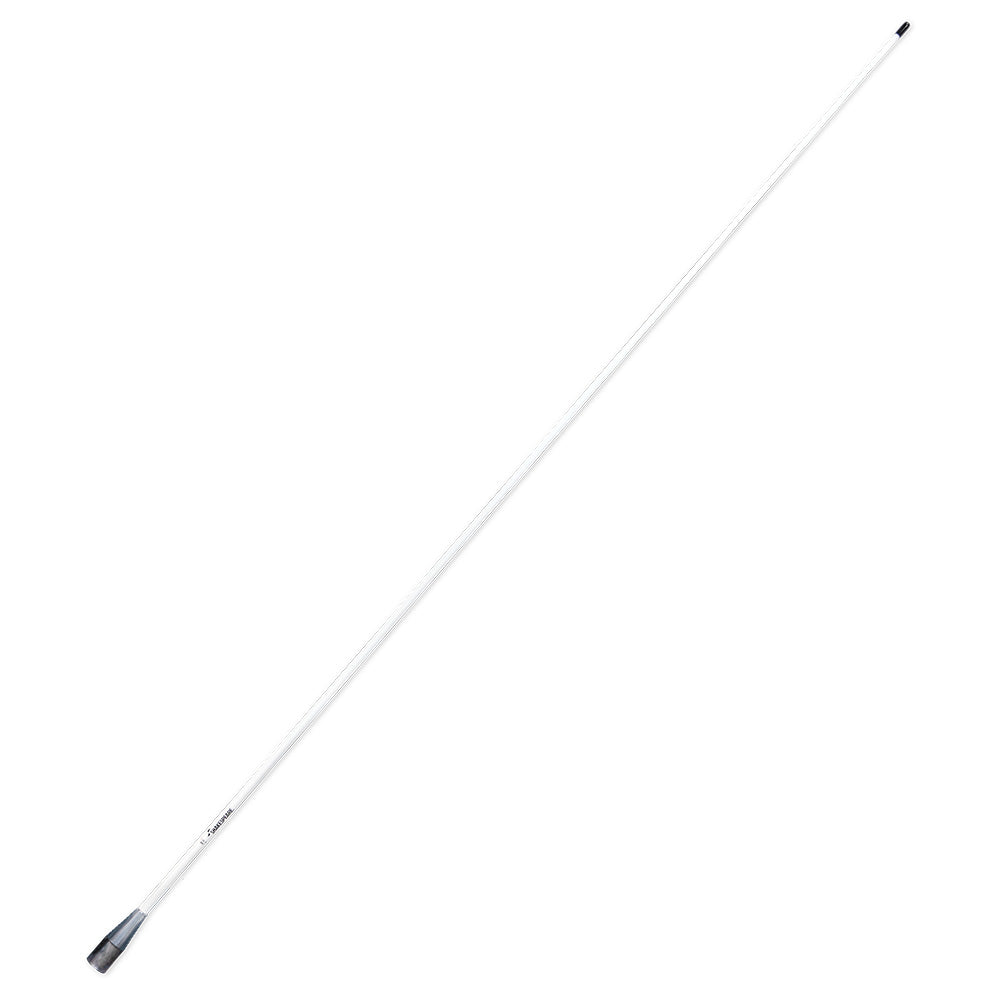

Shakespeare 396-1 5' VHF Antenna [396-1]
Shakespeare 396-1 5' VHF Antenna [396-1]
Click to open expanded view

Shakespeare 396-1 5' VHF Antenna [396-1]

SKU: 396-1-SHA
Sale price
$162.95
Regular price
$199.99
You save
19%
Taxes and shipping calculated at checkout
In stock and ready for shipping
American Express
Apple Pay
Bancontact
Diners Club
Discover
Google Pay
iDEAL Wero
Mastercard
PayPal
Shop Pay
Visa
Shakespeare 396-1 5' VHF Antenna [396-1]

Shakespeare 396-1 5' VHF Antenna [396-1]

$162.95
$199.99

Product information

Style 396-1 VHF 3dB

Center-fed 1/2-wave coaxial sleeve

Outstanding, basic 3dB antenna designed to reduce signal fading in rough seas. This is probably the most widely used antenna on Coast Guard vessels.

  • Brass and copper elements
  • Chrome-plated brass ferrule with standard 1-14 thread
  • Includes 15' RG-58 cable and a PL-259 connector
  • Suggested mount: Style 4187 Ratchet Mount
  • One section

Technical Specifications:

Frequency: VHF Marine band
Bandwidth: (within 2.0:1 SWR): 5 MHz
SWR: 1.5:1 at 156.8 MHz
Impedance (Ohms): 50
Gain: 3 dB
Max Input (Watts): 50
DC Ground: NO
Termination: 15' RG-58 cable
Height (feet): 5
Polarization: Vertical
Radiation pattern: Omni-directional

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Chrome Plated
  • Length (Inches): 60"
  • Box Dimensions: 3"H x 3"W x 63"L WT: 2.9 lbs
  • UPC: 719441100018

Quick Guide (pdf)
