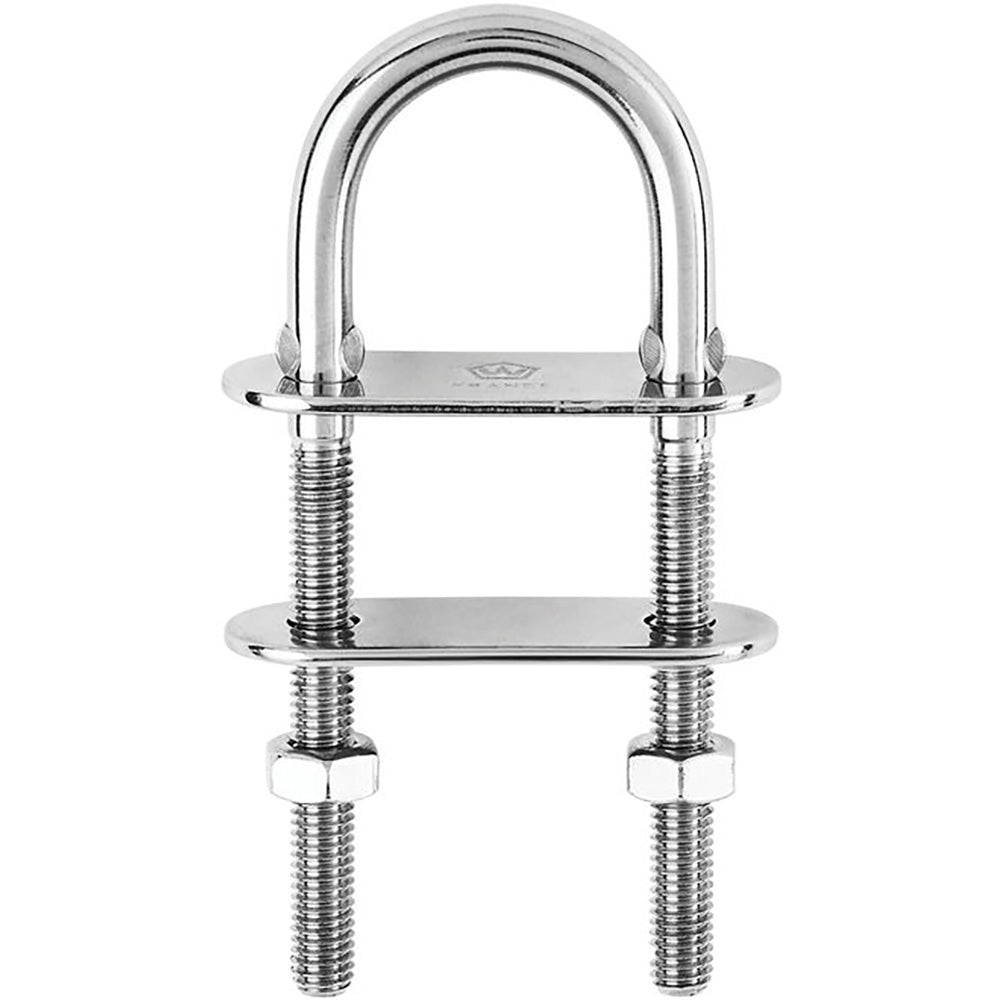

Wichard U-Bolt Pad Eye - 4mm Diameter - 5/32" [6511W]

U-Bolt Pad Eye - 4mm Diameter - 5/32"

Features:

• Fully drop forged product with high-quality stainless steel
• Outstanding working and breaking loads
• For any kind of fastening applications (shrouds, lifelines, blocks...)
• Delivered with bolts and counter-plate
• Max tightening torque: 2.3 Nm

Applications:

• Various fastening applications: shrouds, lifelines, blocks…

Specifications:

• Materials: 316L stainless steel grade
• Working load: (lb) 1050 / (kg) 480
• Breaking load: (lb) 2200 / (kg) 1000
• Weight: (lb) 0.049 / (g) 22

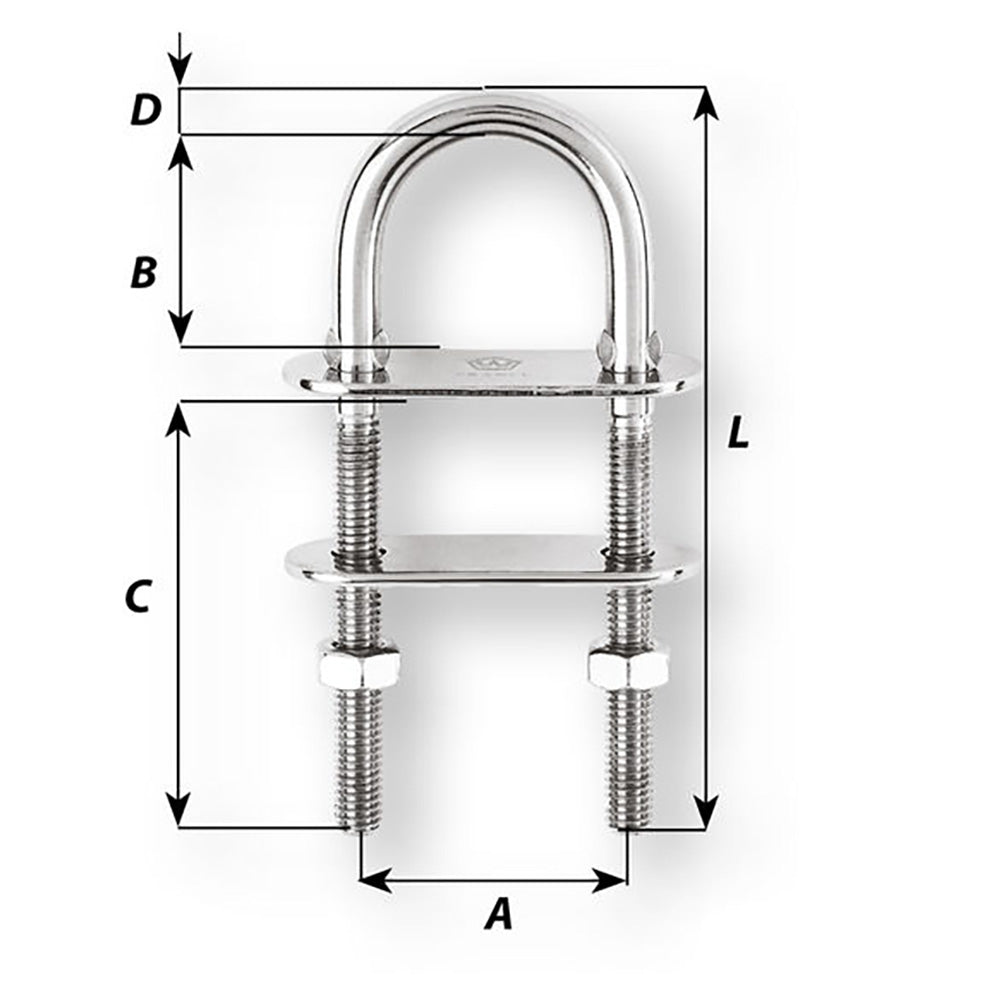

Dimensions:

• A: (inch) 15/16" / (mm) 24
• B: (inch) 53/64" / (mm) 21
• C: (inch) 1 1/16" / (mm) 27
• D diameter: (inch) 5/32" / (mm) 4
• Length: (inch) 1 31/32" / (mm) 50

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
